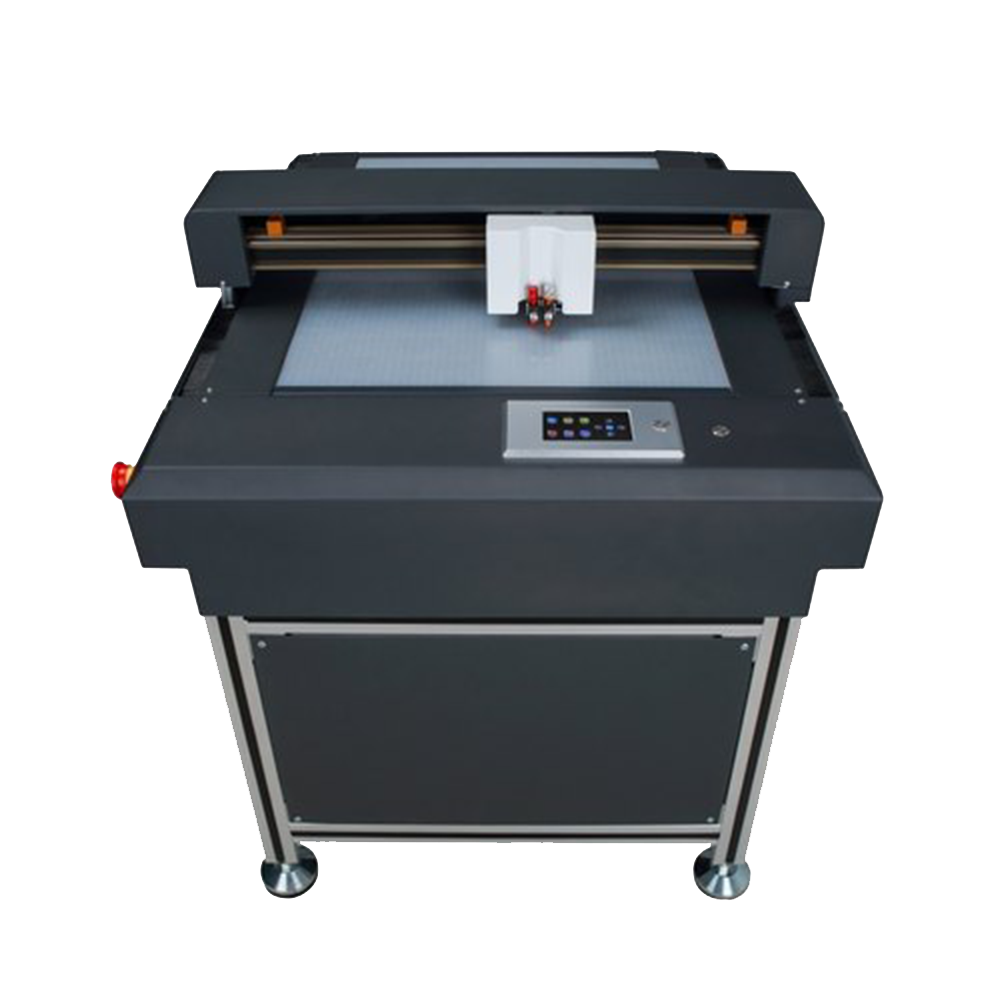

SKYCUT Flatbed Cutting Plotter
Built-in real camera for auto cutting and on various materials via scanning and taking accurate measurements through computer devices.
Features
1. Heavy duty” plotter for multi-purpose (printing, cutting etc.)
2. Large touch screen than any other series product which gives you a big hand in understanding the using procedure of it.
3. Multi-language supportive, which is suitable in any region and any language.
4. 150pcs paper feeding intelligence at a time.
5. Dual independent heads for various and different functions.
Specifications
| Product | SKYCUT F4560 Flatbed | SKYCUT F6090 Flatbed |
|---|---|---|
| Acceptable Media Size | 450*600mm | 600*900mm |
| Max Cutting Size | 450*600mm | 600*900mm |
| Work Mode | Vacuum Adsorbing | Vacuum Adsorbing |
| Control Panel | Touch Screen | Touch Screen |
| Heads | Double Heads | Double Heads |
| Cutting Precision | 0.01mm | 0.01mm |
| Repeat Precision | 20.05 mm | 20.05 mm |
| Max. Moving Speed | 700mm/s | 700mm/s |
| Max. Cutting Speed | 600mm/s | 600mm/s |
| Max. Force | 2000g | 2000g |
| Connector Interface | U-disk/WIFI/USB Cable | U-disk/WIFI/USB Cable |
| Power | <100W | <100W |
| Working Environment | +5°C - +35°C | +5°C - +35°C |
| Packing Size | 1050*900*1020mm | 1370*1020*1020mm |
| Packing Gross Weight | 180KG | 200KG |
